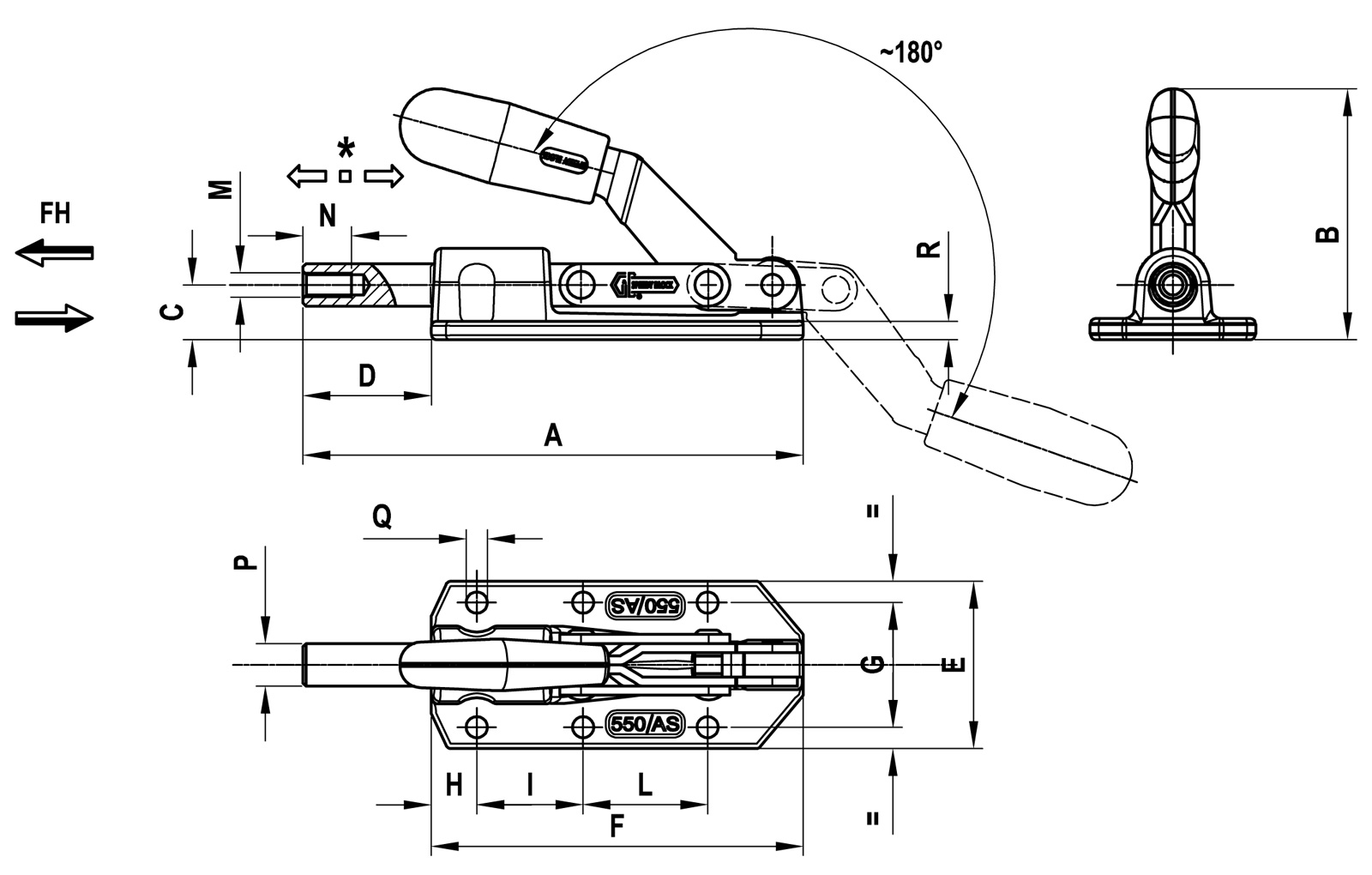

| Code | A | B | C | E | F | G | H | I | L | M | N | O | P | Q | R | * | Fh (daN) | gr |
| 2S.S70/AS | 86 | 42,5 | 12 | 36 | 64 | 26 | 26 | 13 | M6 | 12 | 22 | 8,5 | 4,3 | 6 | 20 | 120 | 170 | |
| 2S.S160/AS | 116 | 56 | 15 | 46 | 85 | 33,5 | 36,5 | 11 | M6 | 12 | 31 | 11 | 5,5 | 10 | 30 | 280 | 400 | |
| 2S.S360/AS | 122 | 72 | 25 | 45,5 | 90 | 33,5 | 36,5 | 30 | M8 | 15 | 32 | 12 | 5,5 | 6 | 32 | 560 | 440 | |
| 2S.S550/AS | 164,5 | 76 | 18 | 55 | 122,5 | 41 | 41 | 35 | 15 | M8 | 16 | 42 | 14 | 7 | 7 | 42 | 800 | 700 |
| 2S.S1100/AS | 182 | 95 | 25 | 57 | 133 | 41 | 41 | 35 | 15 | M10 | 18 | 49 | 16 | 8,5 | 8 | 50 | 1600 | 1060 |
| 2S.S2100/AS | 238 | 118,5 | 35 | 70 | 177 | 50 | 50 | 50 | 35 | M12 | 22 | 61 | 20 | 8,5 | 10 | 60 | 2500 | 2280 |
| 2S.S3100/AS | 316 | 137 | 40 | 76 | 216 | 54 | 70 | 70 | 40 | M14 | 25 | 100 | 22 | 11 | 10 | 100 | 4500 | 3350 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/hyrax/toggle-clamps/as-heavy-push-and-pull-straight-line-action-toggle-clamp.html#sigProIde21175cf7d
https://getechsrl.com/en/products/hyrax/toggle-clamps/as-heavy-push-and-pull-straight-line-action-toggle-clamp.html#sigProIde21175cf7d
Hyrax - Outlet
Toggle Clamps
AS Heavy

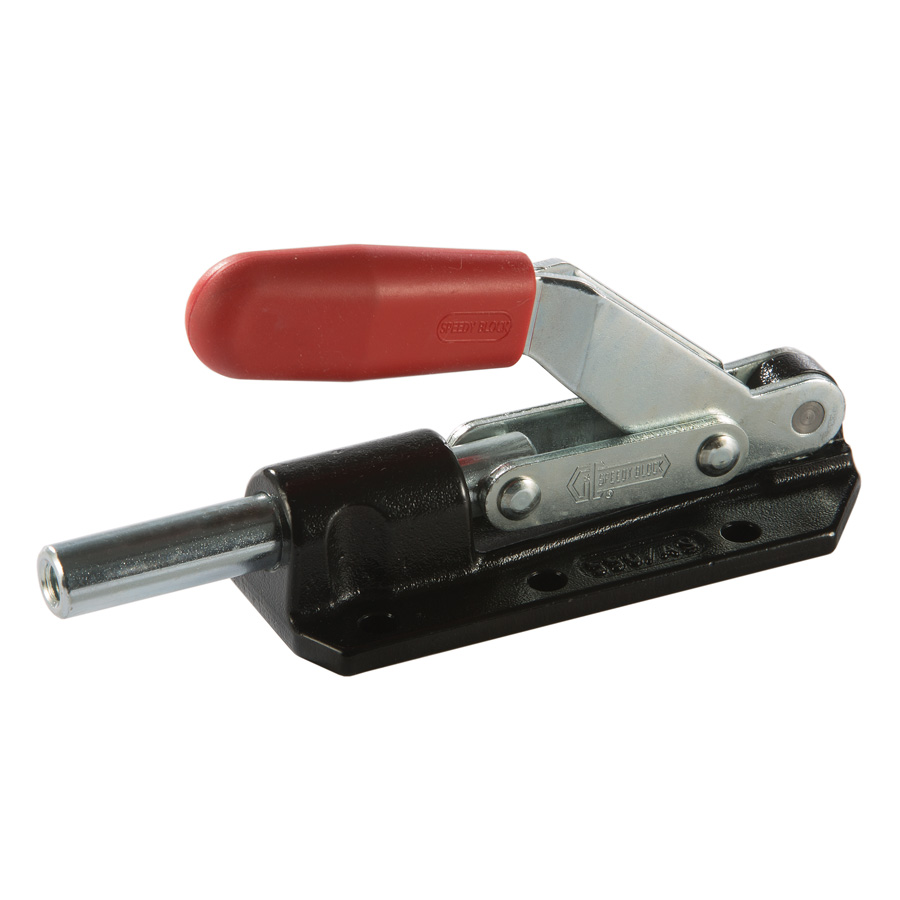

Push and Pull Straight-line Action Toggle Clamp
Features and applications
The straight line action series toggle clamps are converting the circular movement of the control lever into a linear movement of the rod. The main feature of this series is its low force application point as well as the very reduced encumbrance in the vertical. Thanks to the strong structure of the clamps it is perfect in situations where high clamping forces are needed.
This model works either pushing or pulling and meets clamping requirements from 120 to 4500 daN.
Fields of application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering.
Material: Galvanized steel
Riveted pivots, push bar and control lever: Galvanized steel
Basic clamp body: Black varnished brass for size 70; hot forged steel and painted black for the other sizes.
Handles: Red polyurethane - resistant to oils, grease and other chemical agents.
