| Code | Code INOX | A | B | D | E | I | L | M | N | O | P | T | U | Z | * | Fh (daN) | gr |
| 2S.S80/AS | 2S.S80/ASX | 71 | 120 | 38 | 24 | 24 | 10 | M6 | 12 | 15,5 | 10 | M16X1,5 | 19 | 8 | 21 | 300 | 135 |
| 2S.S165/AS | 2S.S165/ASX | 113 | 194 | 59 | 28 | 30 | 12 | M8 | 15 | 20 | 16 | M20X1,5 | 22 | 9 | 38 | 540 | 335 |
| 2S.S340/AS | 2S.S340/ASX | 173 | 256 | 90 | 38 | 36 | 16 | M10 | 18 | 22 | 28 | M24X2 | 30 | 10 | 66 | 700 | 835 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/hyrax/toggle-clamps/as-light-push-and-pull-straight-line-action-toggle-clamp.html#sigProId203a01aac0
https://getechsrl.com/en/products/hyrax/toggle-clamps/as-light-push-and-pull-straight-line-action-toggle-clamp.html#sigProId203a01aac0
Hyrax - Outlet
Toggle Clamps

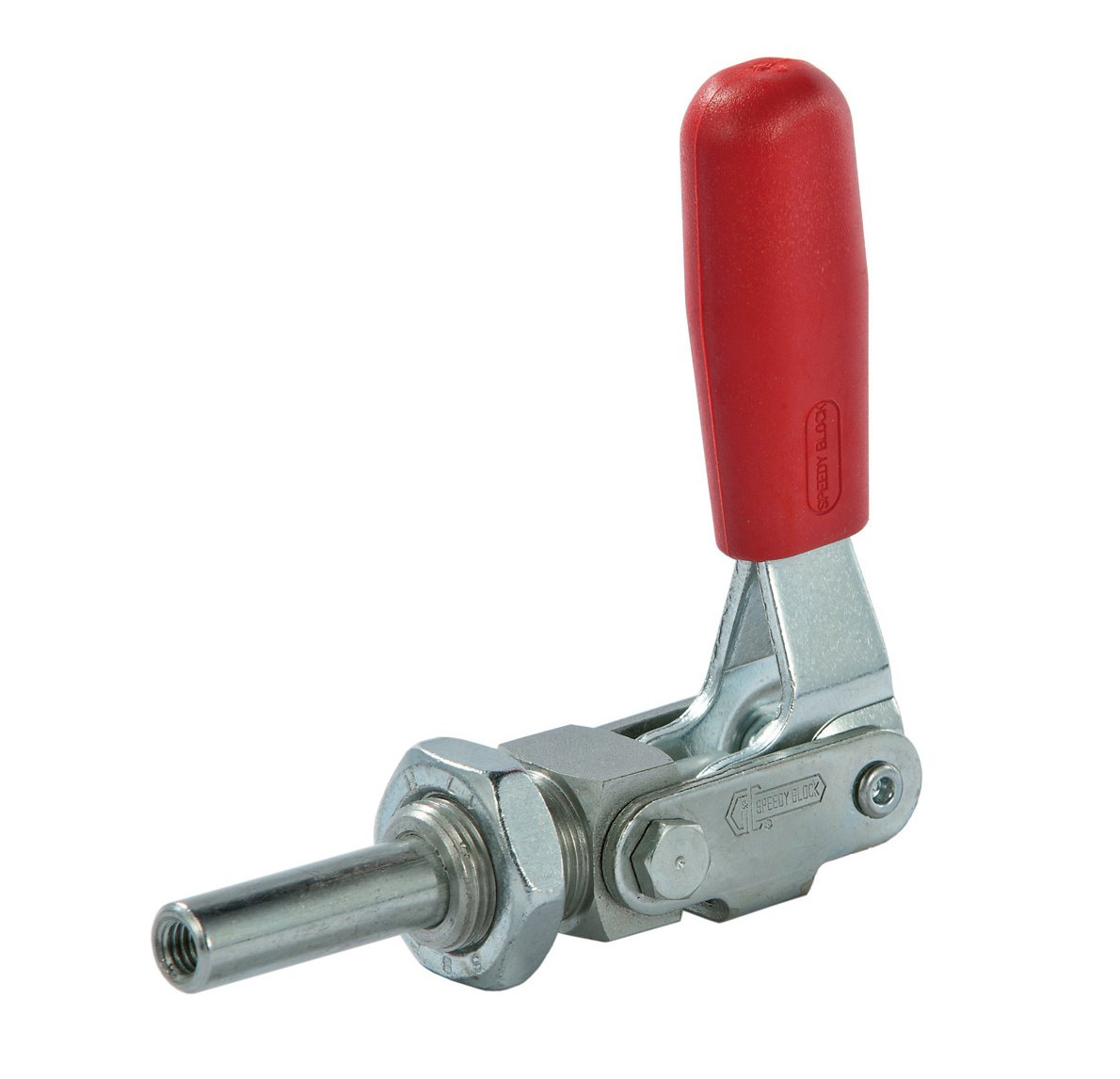

AS Light
Push and Pull Straight-line Action Toggle Clamp
AISI 304 stainless steel items indicated with an "X" in their coding (e.g. 2S.S80/ASX)
Features and applications
The straight line action series toggle clamps are converting the circular movement of the control lever into a linear movement of the rod. The main feature of this series is its low force application point as well as the very reduced encumbrance in the vertical.
The items of this series - thanks to the thread in the front - can be mounted directly on the used equipment and the control lever can be turned to the most favourable position for use.
This model meets clamping requirements from 300 to 700 daN.
A special grease is placed between two contacting surfaces during assembly.
Recommended accessory: Molding Bracket for Straight-line Action Series (to be ordered separately) which increases the possibility of use.
Fields of application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering.
Material:Galvanized steel or AISI 304 stainless steel
Riveted pivots, push bars, bushing fixing screws and sliding bearing and ring: Galvanized steel or AISI 304 stainless steel
Sliding bushes: Galvanized steel or AISI 304 stainless steel
Mounting bracket (to be ordered separately):Galvanized steel or AISI 304 stainless steel
Handles:Red polyurethane resistant to oils, grease and other chemical agents.
