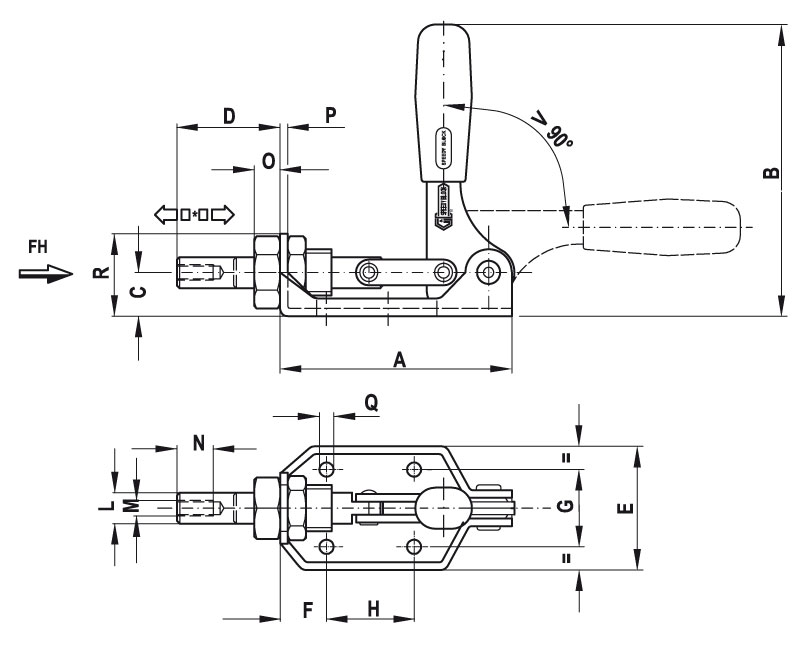

| Code | A | B | C | D | E | F | G | H | L | M | N | O | P | Q | R | * | Fh (daN) | gr |
| 2S.S120/AS | 130 | 111 | 17 | 40 | 48 | 18 | 30 | 34 | 12 | M6 | 12 | 10 | 3 | 5,5 | 32 | 20 | 360 | 350 |
| 2S.S300/AS | 167 | 140 | 20 | 57 | 58 | 18 | 34 | 50 | 14 | M8 | 16 | 12 | 3 | 6,5 | 36 | 33 | 720 | 560 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/hyrax/toggle-clamps/as-only-push-straight-line-action-toggle-clamp.html#sigProId48ebc995ed
https://getechsrl.com/en/products/hyrax/toggle-clamps/as-only-push-straight-line-action-toggle-clamp.html#sigProId48ebc995ed
Hyrax - Outlet
Toggle Clamps
AS Only Push
Straight-line Action Toggle Clamp
Features and applications

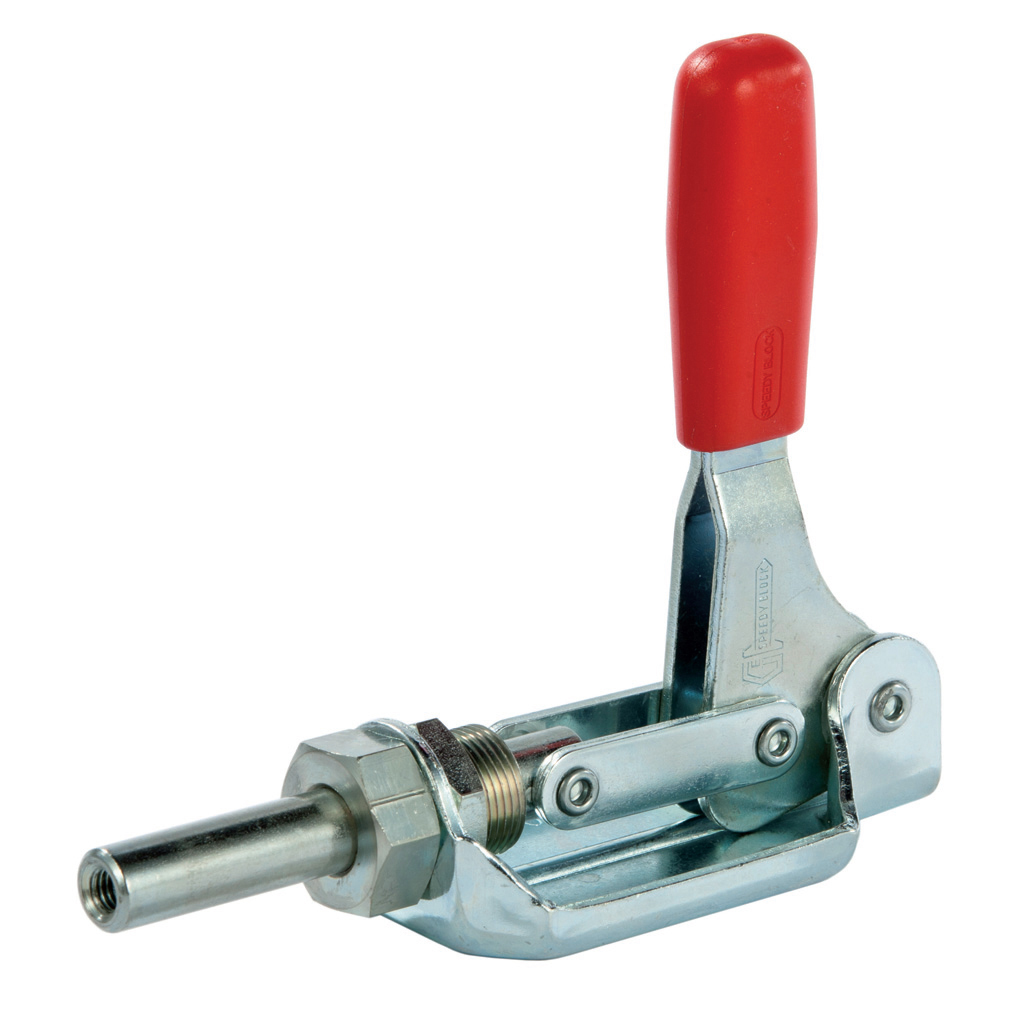

The straight line action series toggle clamps are converting the circular movement of the control lever into a linear movement of the rod. The main feature of this series is its low force application point as well as the very reduced encumbrance in the vertical.
The tools of this series (Form AS) can only be pushed. The series meets clamping requirements from 360 to 720 daN.
A special grease is placed between two contacting surfaces during assembly.
Fields of application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering.
Material: Galvanized steel
Riveted pivots, push bar, sliding bearing and nut: Galvanized steel
Handles: Red polyurethane - resistant to oils, grease and other chemical agents.
