AV

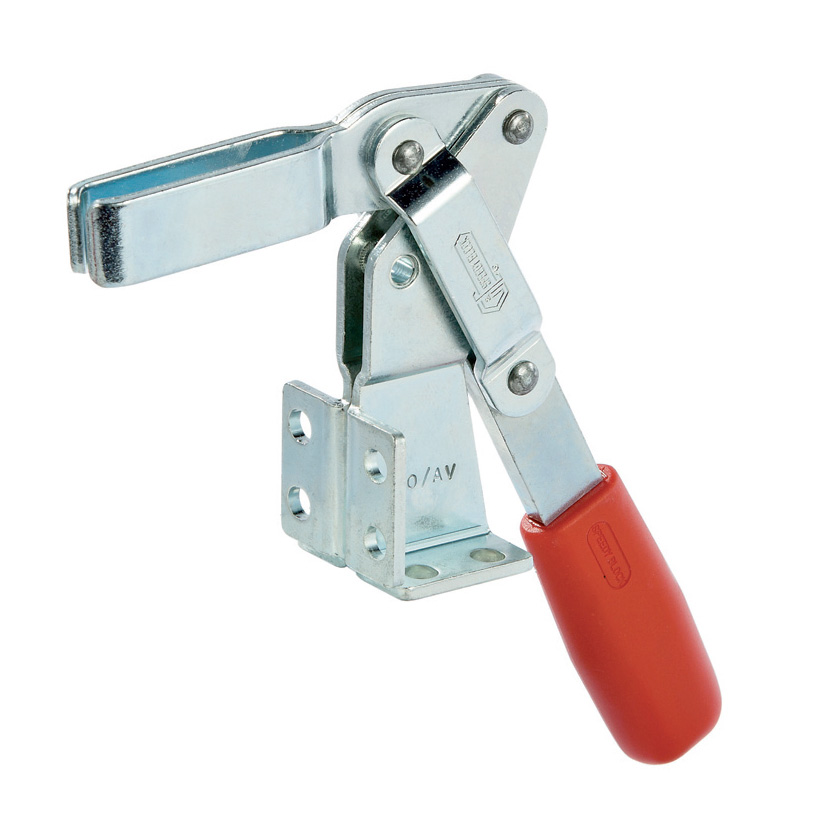

Vertical Toggle Clamps with Folded and Front Base

Features and applications
In case of vertical toggle clamps even a low power input results in a high clamping force. Thanks to this, vertical toggle clamps have a really versatile application in the industrial field. During the closing, the clamping lever is guided laterally to ensure greater stability against possible transverse stresses while working on the component. The clamp has a big and clear opening, like this the insert, change or remove of the working piece is unproblematic.

A special grease is placed between two contacting surfaces during assembly.

Fields of application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering.

Material: Galvanized steel
Supporting bushes: Hardened and ground steel
Handles: Red polyurethane - resistant to oils, grease and other chemical agents.

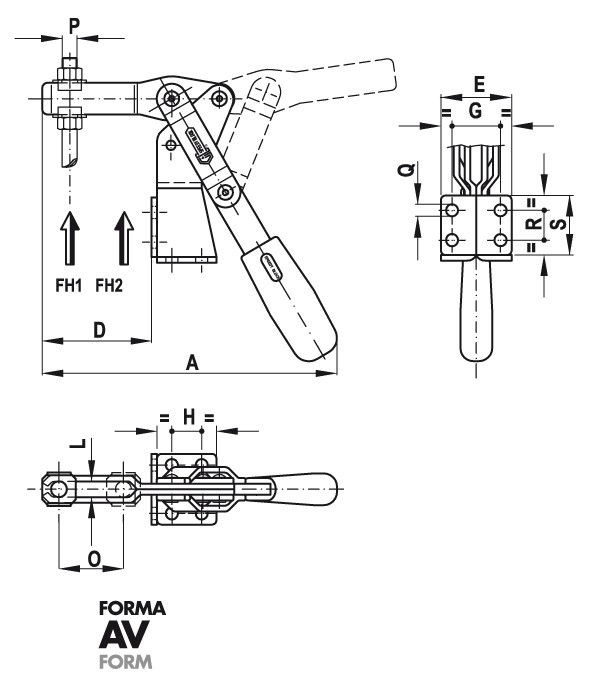

Performance: Form AV with open clamping lever and two flanged washers.
