EPM

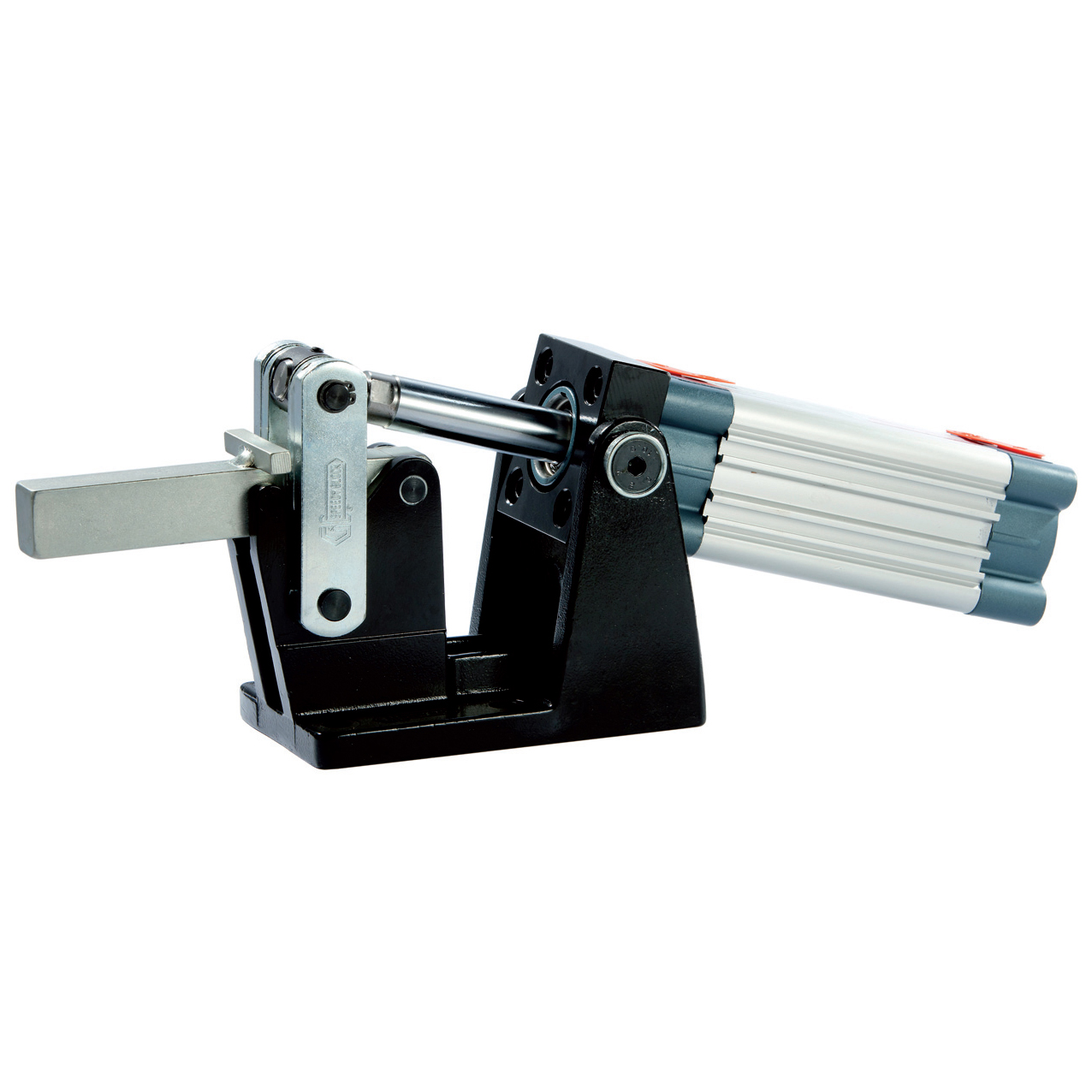

Pneumatic Toggle Clamp with Magnetic Cylinder

Features and applications

The pneumatic series can offer increased productivity with a safe and automatic operation by combining the design of the hand-operated tools and the power of air pressure. Apart from the high load capacity there are several advantages of pneumatic toggle clamps:
- Constant clamping force (FS) - independent of the operation
- Possibility of the operation of several devices at the same time
- Possibility of the activation from various points - remote control could be performed by machines.
- Different versions are available with magnetic cylinders that allow contactless positioning control to obtain electrical command pulses in particular tightening situations.

The clamp remain closed even in the case of loss of air pressure.

This item also available without a magnetic cylinder. (see Pneumatic Toggle Clamp Form AP3 and Form EP3)

The manually operated equivalent of this item is in our Vertical series (see Vertical Toggle Clamp with Folded Base)

Recommendations
We recommend using a filter-reducer-lubricator group for a long and smooth operation of the cylinder, while for a long duration of the mechanical components we recommend using suitable flow regulators and calibrating the speed of the motions desired, starting from a low speed and gradually increasing this speed.
A special grease is placed between two contacting surfaces during assembly.

Material: Base made of spheroidal cast iron; Lever in galvanized steel; Hardened and ground pivots.

Cylinder: Magnetic ISO standards. Maximum operating pressure 10 bar. Maximum operating temperature 80°C

Model 2S.AAU470 is the recommended proximity switch for detecting the position to be ordered separately. (see Accessories)
