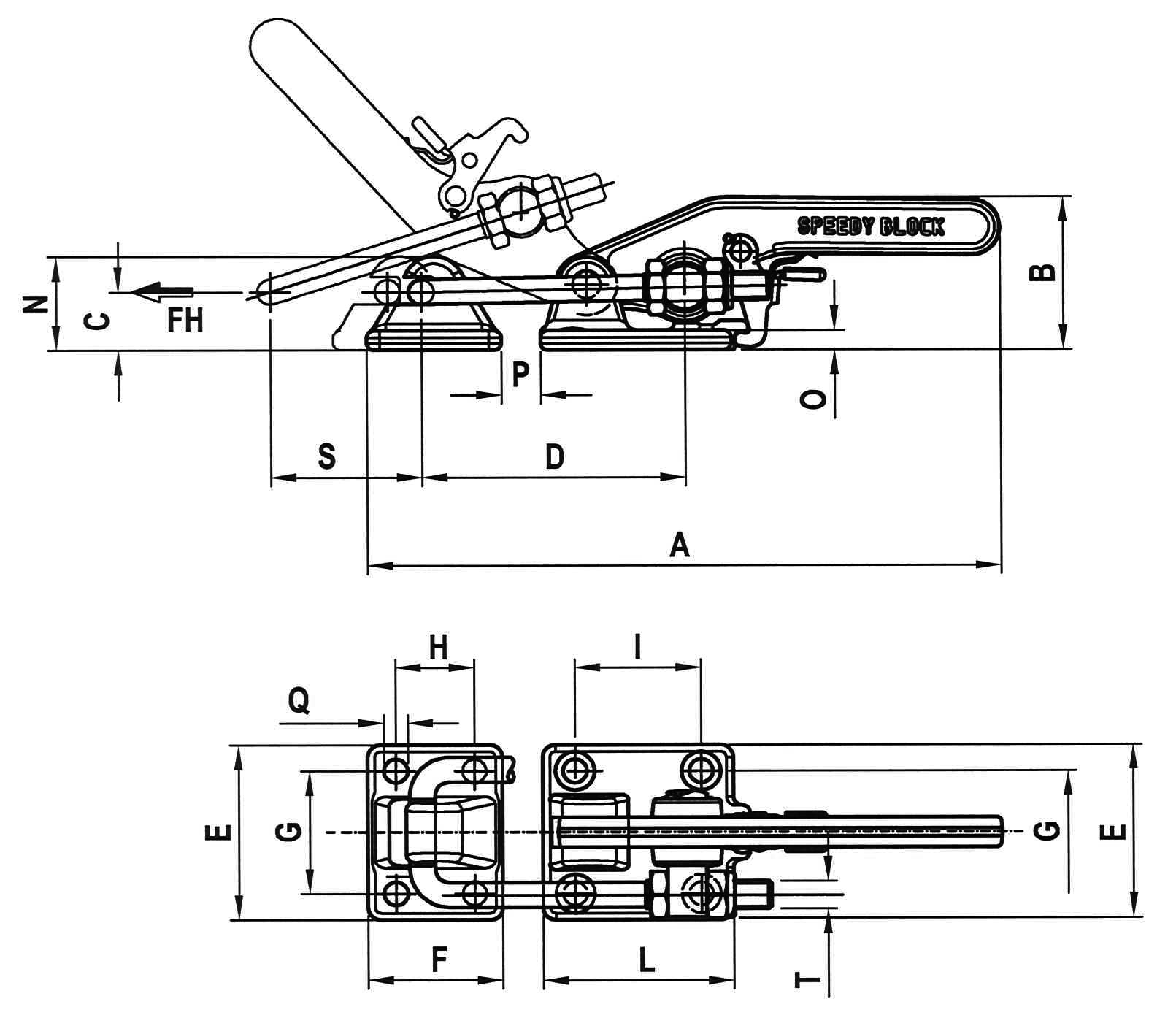

| Code | A | B | C | D | E | F | G | H | I | L | N | O | P | Q | S | T | Fh (daN) | FhX (daN) | gr |
| 2S.T1700/T6 | 226 | 55 | 21 | 94÷106 | 64 | 48 | 45 | 28 | 45 | 68 | 34 | 7 | 14 | 8,5 | 54÷58 | M10 | 1700 | - | 1110 |
| 2S.T4000/T6 | 282 | 68 | 27 | 112÷124 | 80 | 60 | 57 | 35 | 57 | 85 | 42 | 9 | 14 | 10,5 | 62÷65 | M12 | 4000 | - | 2100 |
| 2S.T1700/T6X | 226 | 55 | 21 | 94÷106 | 64 | 48 | 45 | 28 | 45 | 68 | 34 | 7 | 14 | 8,5 | 54÷58 | M10 | - | 1400 | 1110 |
| 2S.T4000/T6X | 282 | 68 | 27 | 112÷124 | 80 | 60 | 57 | 35 | 57 | 85 | 42 | 9 | 14 | 10,5 | 62÷65 | M12 | - | 3000 | 2100 |
View the embedded image gallery online at:
https://getechsrl.com/en/products/hyrax/toggle-clamps/t6-heavy-latch-type-toggle-clamp-with-double-rod-series-and-safety-lock.html#sigProIdedf751960f
https://getechsrl.com/en/products/hyrax/toggle-clamps/t6-heavy-latch-type-toggle-clamp-with-double-rod-series-and-safety-lock.html#sigProIdedf751960f
Hyrax - Outlet
Toggle Clamps
T6 Heavy

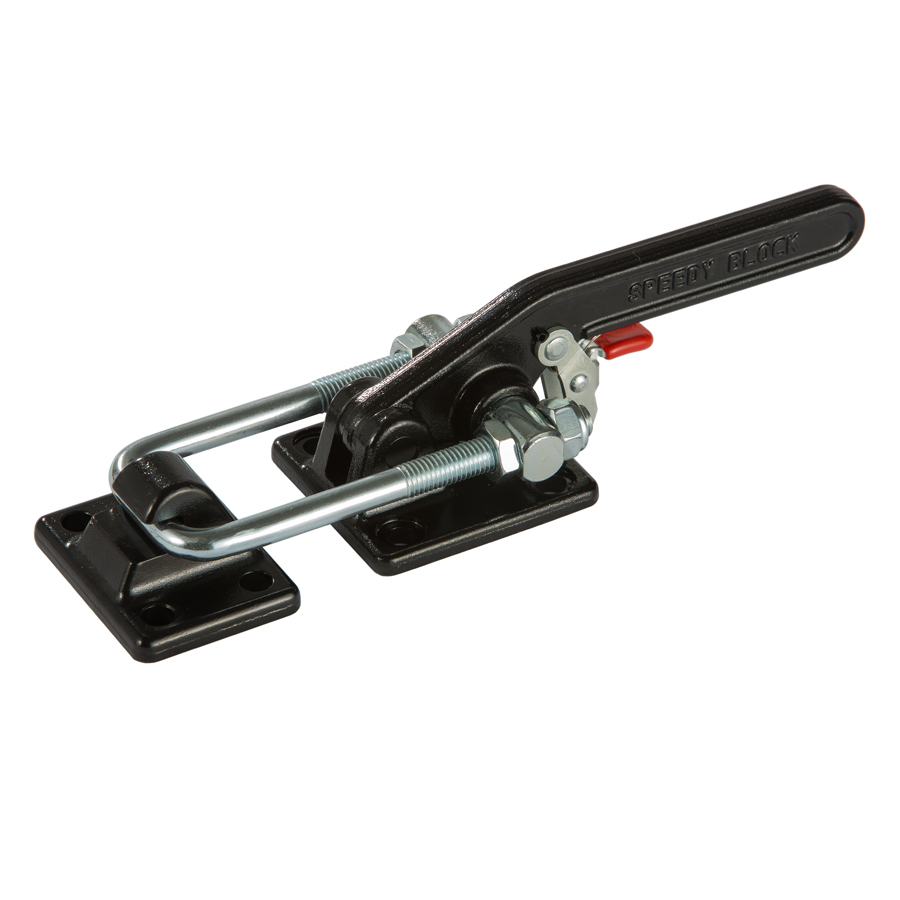

Latch Type Toggle Clamp with Double Rod Series and Safety Lock
Stainless steel items indicated with an "X" in their coding (e.g: 2S.T1700/T6X)
Features and applications
In this series the special anti-release lever is avoiding any accidental opening caused by vibrations. The latch type toggle clamps are most suitable for applications on lids and covers. Thanks to the materials chosen, the tools of the latch type heavy performance line guarantee extra resistance. An important feature of the toggle clamps of this line is the low profile of the tool, which becomes essential when clearance above the tool is required. In the closed position, the control lever is parallel to the support base.
A special grease is placed between two contacting surfaces during assembly.
Fields of Application: woodworking, welding, plastic injection molding, CNC machining, various types of assembly, automotive industry, engineering
Material: Hot stamped, weldable,black varnished steel or hot stamped AISI 304 stainless steel.
Pivot: Hardened, ground and knurled steel to prevent rotation.
Bar, swinging pivot and nuts: Galvanized steel or AISI 303 stainless steel
Performance: The tool comes with a double bar with hooking bracket and nuts. In addition to the standard length of the U rods, a variety of other lengths are available.
