Toggle Clamps

U

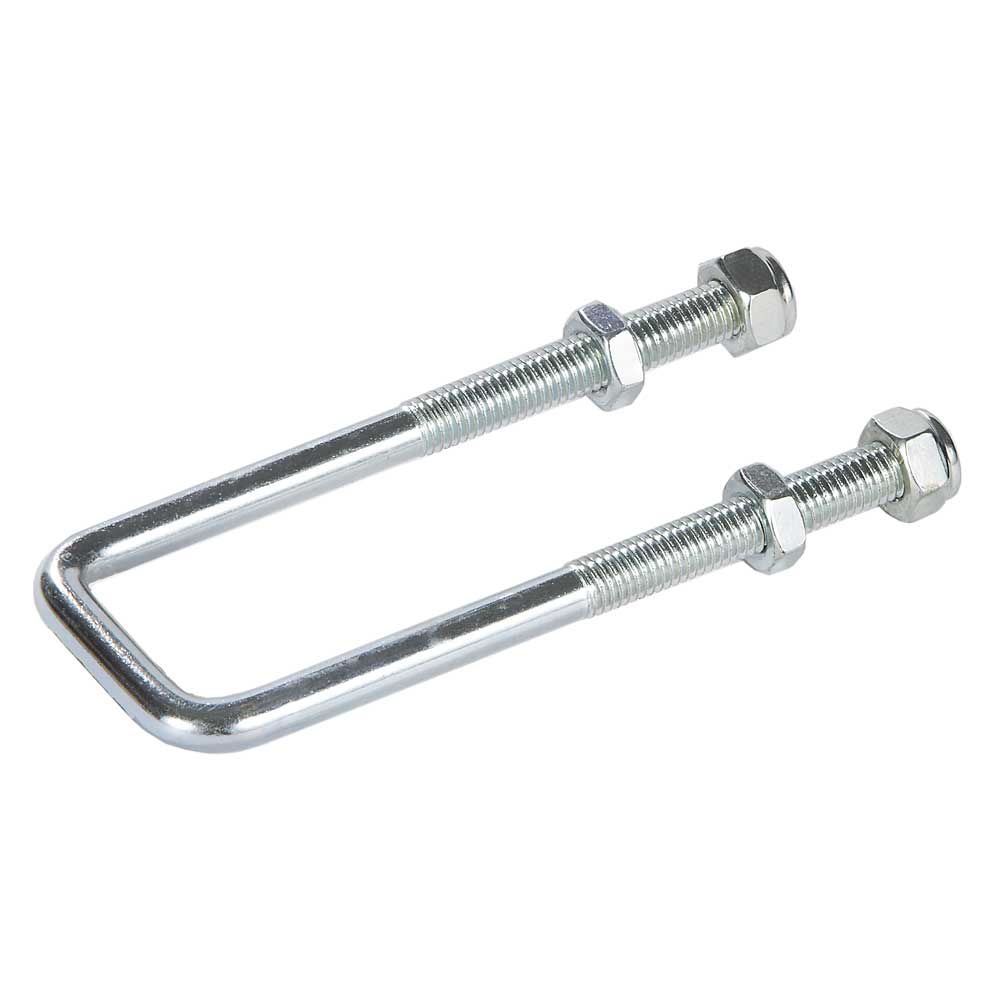

U-shaped Accessory for Latch Series

U-shaped rod complete with 4 nuts.

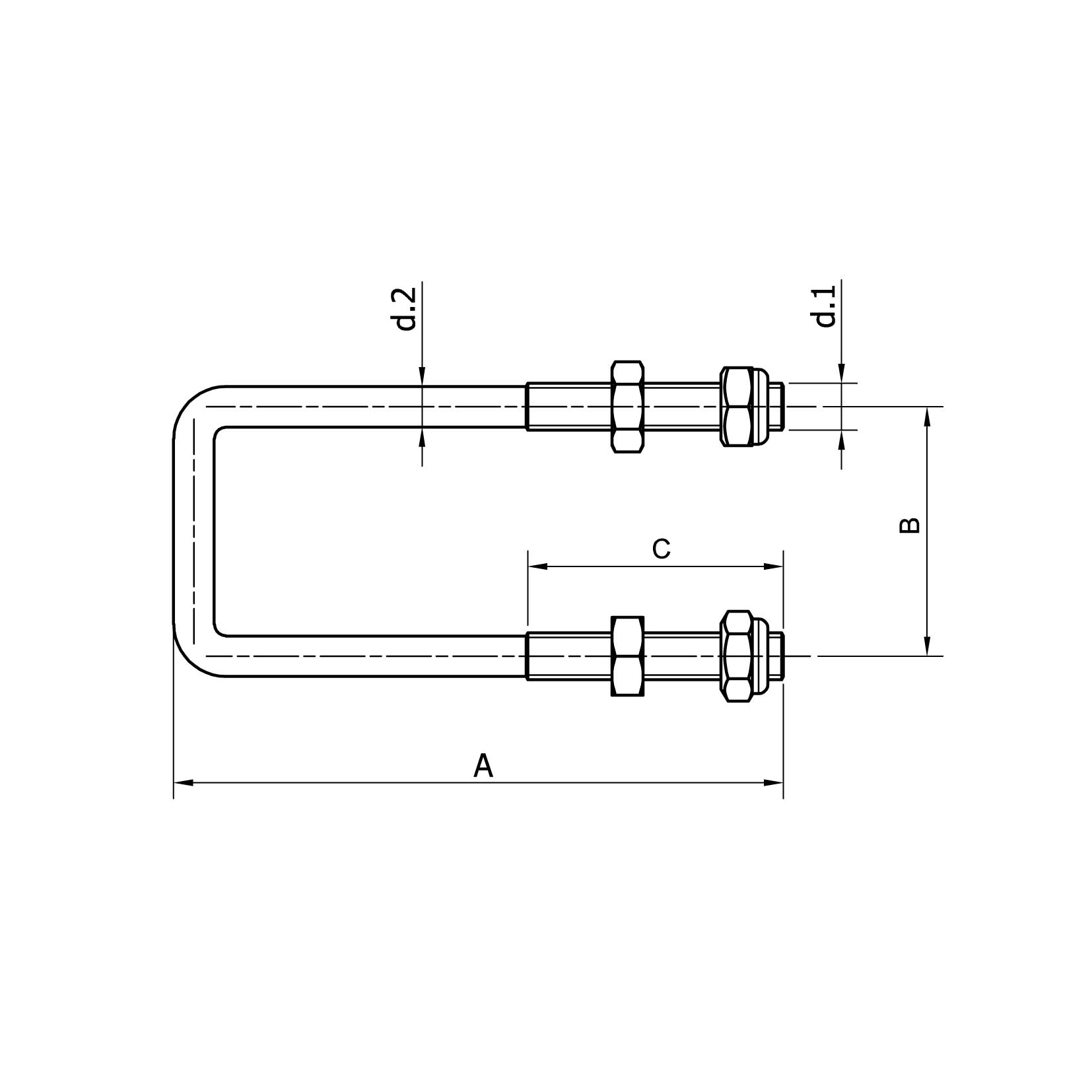

Code	For models	Code (INOX 304)	For models	Code (INOX 316)	For models	A	B	C	d.1	d.2
2S.AAX556	160/T2-T6	2S.AAX570	160/T2X	2S.AAX604	160/T16	56,4	21	27,5	M4	3,4
2S.AAX557	160/T3-T4	2S.AAX574	160/T3X		-	70,4	21	28,5	M4	3,4
2S.AAX556-103	160/T20-T30-T40-T60	2S.AAX570-103	160/T20X-T30X	2S.AAX604-103	160/T160	103,4	21	30	M4	3,4
2S.AAX556-153	160/T20-T30-T40-T60	2S.AAX570-153	160/T20X-T30X	2S.AAX604-153	160/T160	153,4	21	35	M4	3,4
2S.AAX556-203	160/T20-T30-T40-T60	2S.AAX570-203	160/T20X-T30X	2S.AAX604-203	160/T160	203,4	21	35	M4	3,4
2S.AAX558	320/T2-T6	2S.AAX572	320/T2X	2S.AAX606	320/T16	78,2	32	44	M6	5,2
2S.AAX559	320/T3-T4	2S.AAX576	320/T3X		-	110,2	32	44	M6	5,2
2S.AAX558-130	320/T20-T30-T40-T60	2S.AAX572-130	320/T20X-T30X	2S.AAX606-130	320/T160	130,2	32	45	M6	5,2
2S.AAX558-155	320/T20-T30-T40-T60	2S.AAX572-155	320/T20X-T30X	2S.AAX606-155	320/T160	155,2	32	45	M6	5,2
2S.AAX558-205	320/T20-T30-T40-T60	2S.AAX572-205	320/T20X-T30X	2S.AAX606-205	320/T160	205,2	32	45	M6	5,2
2S.AAX560	700/T2-T6	2S.AAX573	700/T2X	2S.AAX608	700/T16	111,2	38	52	M8	7,2
2S.AAX563	700/T3-T4	2S.AAX577	700/T3X			143,2	38	56	M8	7,2
2S.AAX560-127	700/T20-T30-T40-T60	2S.AAX573-127	700/T20X-T30X	2S.AAX608-127	700/T160	127,2	38	60	M8	7,2
2S.AAX560-157	700/T20-T30-T40-T60	2S.AAX573-157	700/T20X-T30X	2S.AAX608-157	700/T160	157,2	38	60	M8	7,2
2S.AAX560-207	700/T20-T30-T40-T60	2S.AAX573-207	700/T20X-T30X	2S.AAX608-207	700/T160	207,2	38	60	M8	7,2
2S.AAX561	1700/T2-T2S-T6-T6S	2S.AAX578	1700/T2X-T2SX-T6-T6SX		-	129	46	45	M10	9
2S.AAX564	1400/T3-T3S		-		-	149	46	55	M10	9
2S.AAX561-179	1700/T20-T2S0-T60-T6S0	2S.AAX578-179	1700/T20X-T2S0X-T60X-T6S0X		-	179	46	45	M10	9
2S.AAX561-209	1700/T20-T2S0-T60-T6S0	2S.AAX578-209	1700/T20X-T2S0X-T60X-T6S0X		-	209	46	45	M10	9
2S.AAX561-259	1700/T20-T2S0-T60-T6S0	2S.AAX578-259	1700/T20X-T2S0X-T60X-T6S0X		-	259	46	45	M10	9
2S.AAX565	1510/T2-T2S		-		-	179	52	70	M10	8,9
2S.AAX562	4000/T2-T2S-T6-T6S	2S.AAX580	4000/T2X		-	150,8	55	70	M12	10,8
2S.AAX562-211	4000/T20-T2S0-T60-T6S0	2S.AAX580-211	4000/T20X-T2S0X-T60X-T6S0X		-	210,80	55	70	M12	10,8
2S.AAX562-361	4000/T20-T2S0-T60-T6S0	2S.AAX580-361	4000/T20X-T2S0X-T60X-T6S0X		-	360,80	55	70	M12	10,8
2S.AAX562-421	4000/T20-T2S0-T60-T6S0	2S.AAX580-421	4000/T20X-T2S0X-T60X-T6S0X		-	420,80	55	70	M12	10,8
