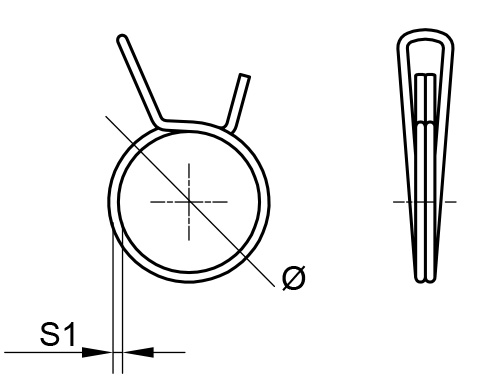

Click to enlarge image 1_BM_disegno.jpg

  • Click to enlarge image 1_BM_disegno.jpg

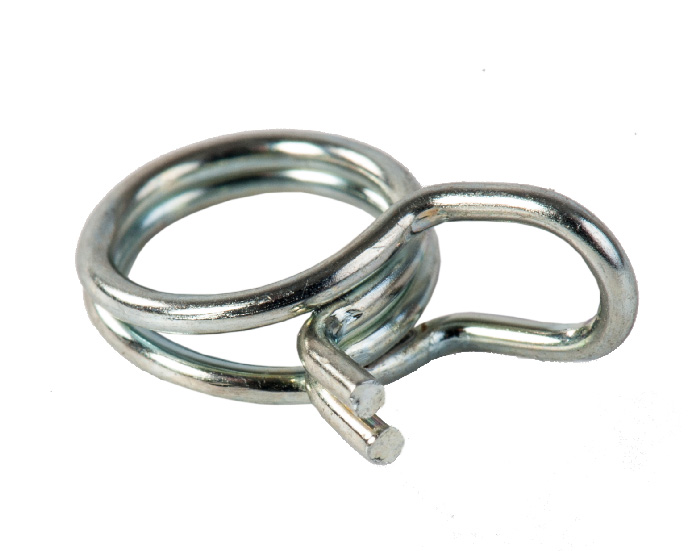

  • Click to enlarge image BIFILARI-A-MOLLA.jpg
  •
View the embedded image gallery online at:
https://getechsrl.com/en/products/kiudo/clamping-systems-without-screws-and-tools/bv-double-wire-spring-clamp-w1.html#sigProIdf87e12ed8b
Download Technical Sheet

Kiudo

Clamping Systems Without Screws

BM
Double Wire Spring Clamp W1

Product specification

MATERIAL: Zinc plated steel W1
USE: Hose clamp recommended for hoses with spiral reinforcement in relief. They guarantee an optimal tightening even with very soft hoses or those with a thin thickness.



UPON REQUEST

COD. Ø min. mm Ø max mm Ø ideal mm S1 mm
BM0059 5,9  6,3 5,8  0,8
BM0066 6,6 7  6,8  1
BM0070 7 7,5 7,3  1
BM0073 7,3  7,8  7,6 1
BM0078  7,8  8,3  8,1  1
BM0083 8,3  8,8  8,6 1
BM0088  8,8  9,3  9,1 1
BM0093 9,3  9,9  9,6  1
BM0098  9,8  10,4  10,1  1,2
BM0104 10,4  11  10,7  1,2
BM0110  11  11,6  11,3  1,2
BM0116  11,6  12,3  11,9  1,5
BM0124 12,4  13,1  12,8  1,2
BM0129  12,9  13,6  13,3  1,5
BM0133 13,3  14,1  13,7  1,5
BM0136  13,6  14,4  14  1,5
BM0144 14,4  15,1  14,8  1,8
BM0155  15,5  16,3  15,8  1,6
BM0159 15,9  16,8  16,4  1,8
BM0168 16,8  17,7  17,3  1,8
BM0177  17,7  18,7  18,2  1,9
BM0192 18,7  19,5  19,2  2
BM0206  20,6  21,6  21,2  2
BM0215 21,5  22,6  22,1 2,2
BM0220 22  23,1  22,6  2,2
BM0235  23,5  24,7  24,2  2,2
BM0244 24,4  26  25,2  2,5
BM0251 25,1  26,4 25,8  2,5
BM0258 25,8  27,4 26,3  2,5





Products Quotation Request

This procedure allows you to request a quote for the product . Quantity to request in the quote

* The n. of pieces in a pack are indicated on the product page, if not indicated reference is made to n.1 piece
