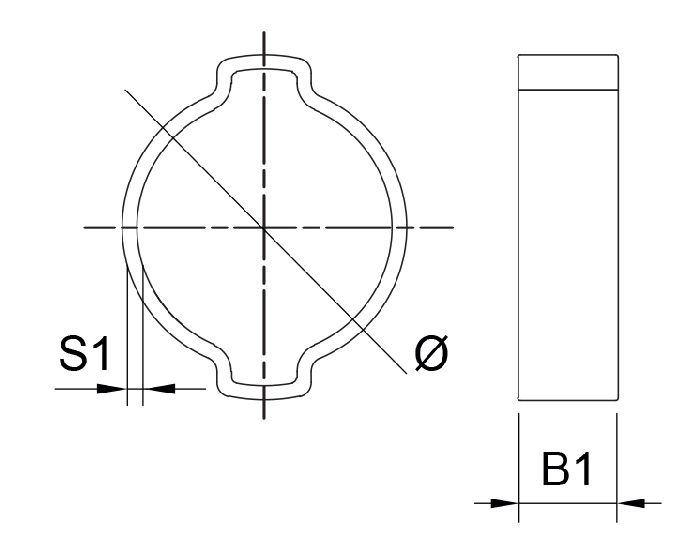

Click to enlarge image 1_OKD_disegno.jpg

View the embedded image gallery online at:
https://getechsrl.com/en/products/kiudo/clamping-systems-without-screws-and-tools/okd-zinc-plated-2-ears-clip.html#sigProId1b05991f34

Download Technical Sheet

Kiudo

Clamping Systems Without Screws

OKD

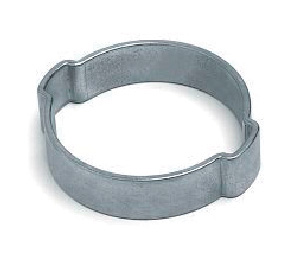

Zinc Plated 2 Ears Clip

Product specification

BAND MATERIAL: Galvanized steel, zinc plated
USE: Simple and inexpensive system for clamping pipes in permanent way

COD. W1	Ø min. mm	Ø max. mm	B1 mm	S1 mm	Q.ty
OKD050	5	7	6	0,6	100
OKD070	7	9	6	0,8	100
OKD090	9	11	6,5	0,8	100
OKD110	11	13	6,5	0,9	100
OKD130	13	15	7	1	100
OKD150	15	18	7,5	1,2	100
OKD170	17	20	7,5	1,2	100
OKD200	20	23	8	1,3	100
OKD220	22	25	8,5	1,4	100
OKD230	23	27	8,5	1,4	100
OKD250	25	28	9	1,4	100
OKD280	28	31	9	1,4	100
OKD310	31	34	9,5	1,4	100
OKD340	34	37	9,5	1,6	100
OKD370	37	40	10	1,6	100
