Worm Drive Hose Clamps

FST - GST

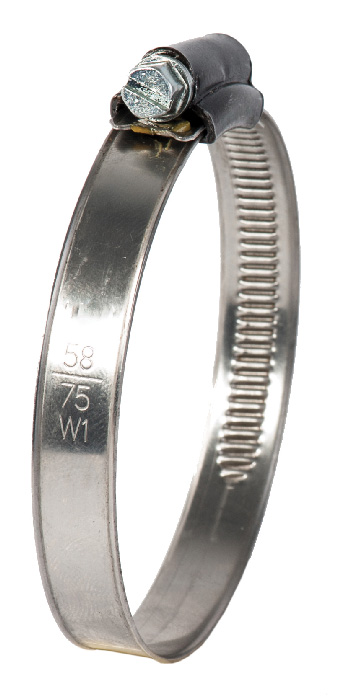

Worm Drive Hose Clamp with “BLACK HOUSING” W1

Product specification

BAND AND SCREW MATERIAL: Zinc plated steel

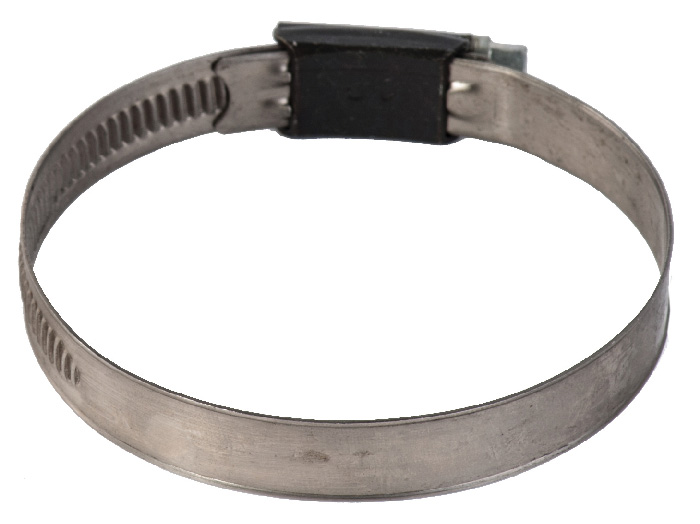

HOUSING MATERIAL: Black painted steel
BAND FEATURES: Shaped non-perforated

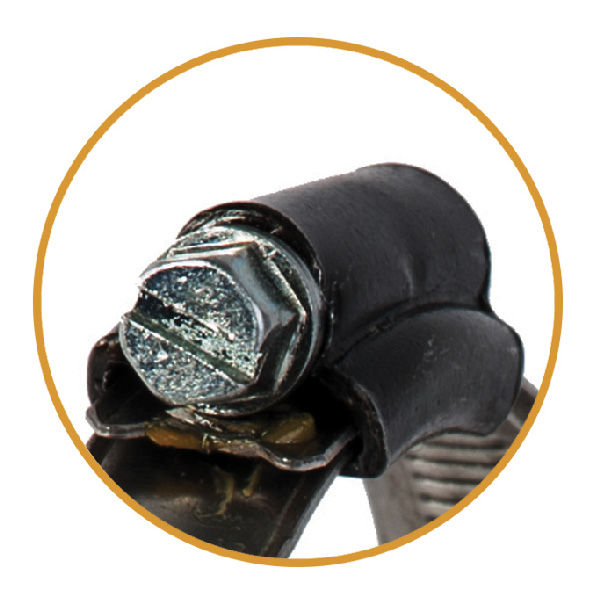

SCREW FEATURES: Hexagonal head with slot for screwdriver

SPECIFIC FEATURES: This hose clamp complies with standard SMS 2298. This heavy duty clamp is suitable for applications in heavy industry, automotive, industrial vehicles, agriculture, railway industry etc. This clamp is not only very robust, but it will also last much linger compared to classic electroplating protection. The band with rolled-up edged ensures perfect clamping on the hose without damaging it. The compact screw and ratchet assembly and also the housing made from a drawn tube make this clamp highly torsion-resistant.

UPON REQUEST

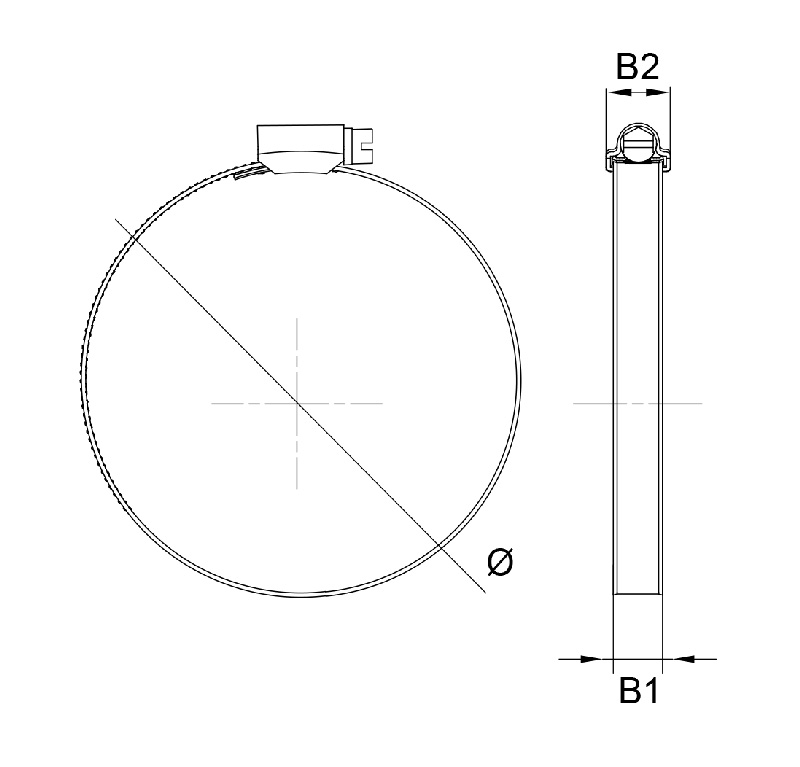

COD. W1	Ø min. mm	Ø max. mm	B1 mm	B2 W1 mm	Safe Working Torque Nm
FST008	8	14	9,7	12,8	3,5 Nm
FST011	11	17	9,7	12,8	3,5 Nm
FST013	13	20	9,7	12,8	3,5 Nm
FST015	15	24	9,7	12,8	3,5 Nm
FST019	19	29	9,7	12,8	3,5 Nm
FST022	22	32	9,7	12,8	3,5 Nm
GST015	15	25	11,7	15,2	5,5 Nm
GST019	19	28	11,7	15,2	5,5 Nm
GST022	22	32	11,7	15,2	5,5 Nm
GST026	26	38	11,7	15,2	5,5 Nm
GST032	32	44	11,7	15,2	5,5 Nm
GST038	38	50	11,7	15,2	5,5 Nm
GST044	44	56	11,7	15,2	5,5 Nm
GST050	50	65	11,7	15,2	5,5 Nm
GST058	58	75	11,7	15,2	5,5 Nm
GST068	68	85	11,7	15,2	5,5 Nm
GST077	77	95	11,7	15,2	5,5 Nm
GST087	87	112	11,7	15,2	5,5 Nm
GST104	104	138	11,7	15,2	5,5 Nm
GST130	130	165	11,7	15,2	5,5 Nm
GST155	155	180	11,7	15,2	5,5 Nm
GST175	175	205	11,7	15,2	5,5 Nm
GST200	200	231	11,7	15,2	5,5 Nm
GST226	226	256	11,7	15,2	5,5 Nm
GST251	251	282	11,7	15,2	5,5 Nm
GST277	277	307	11,7	15,2	5,5 Nm
